Nitrocare

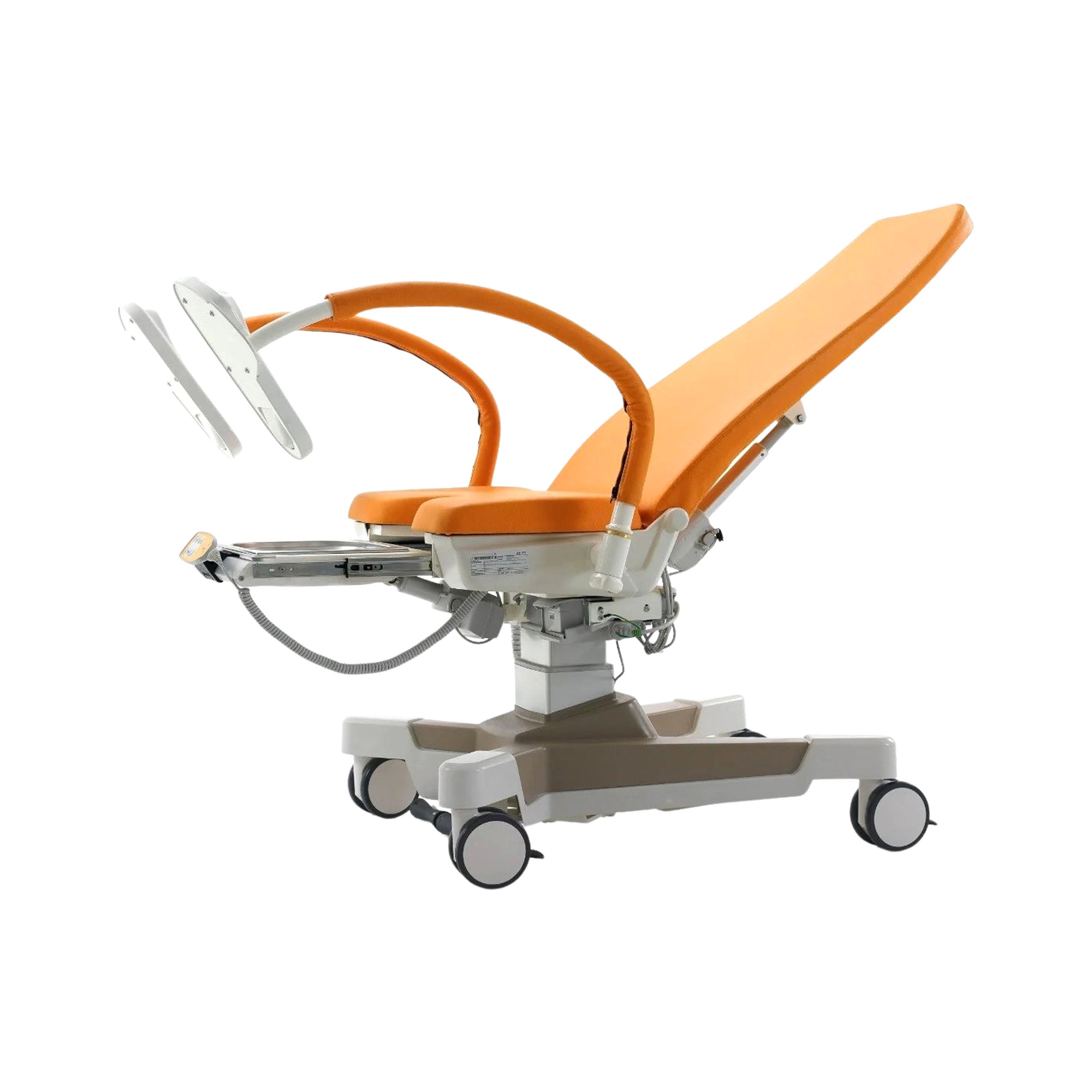

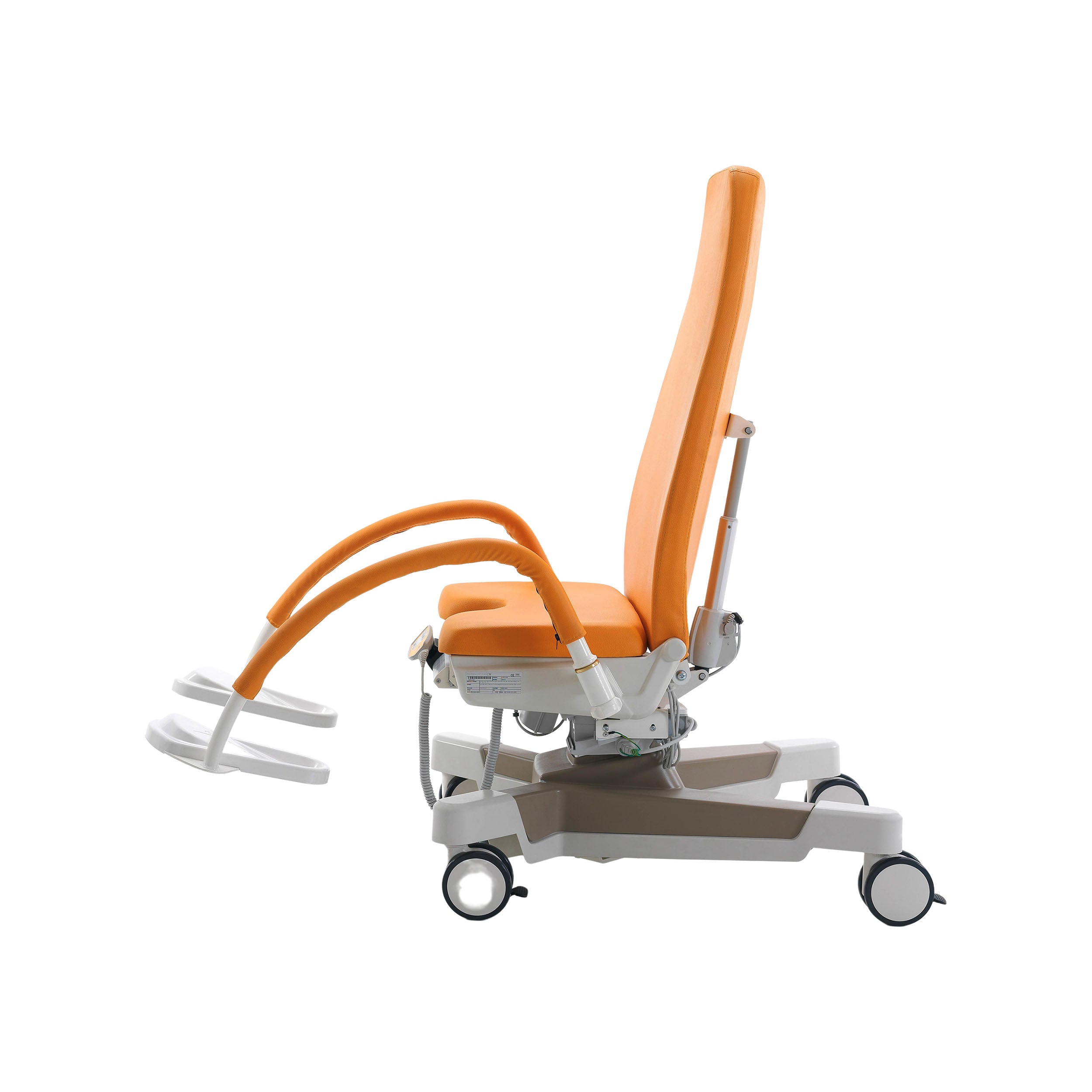

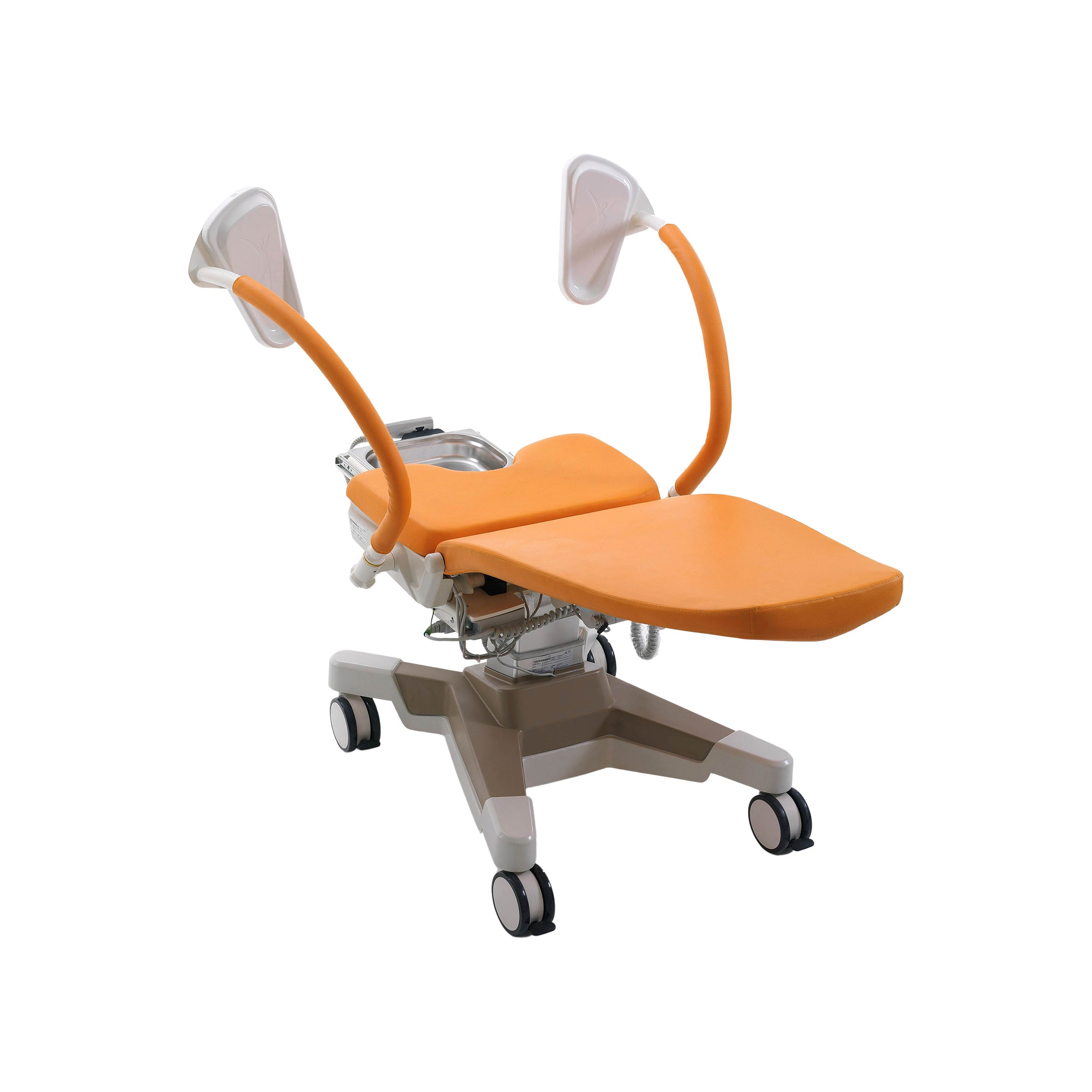

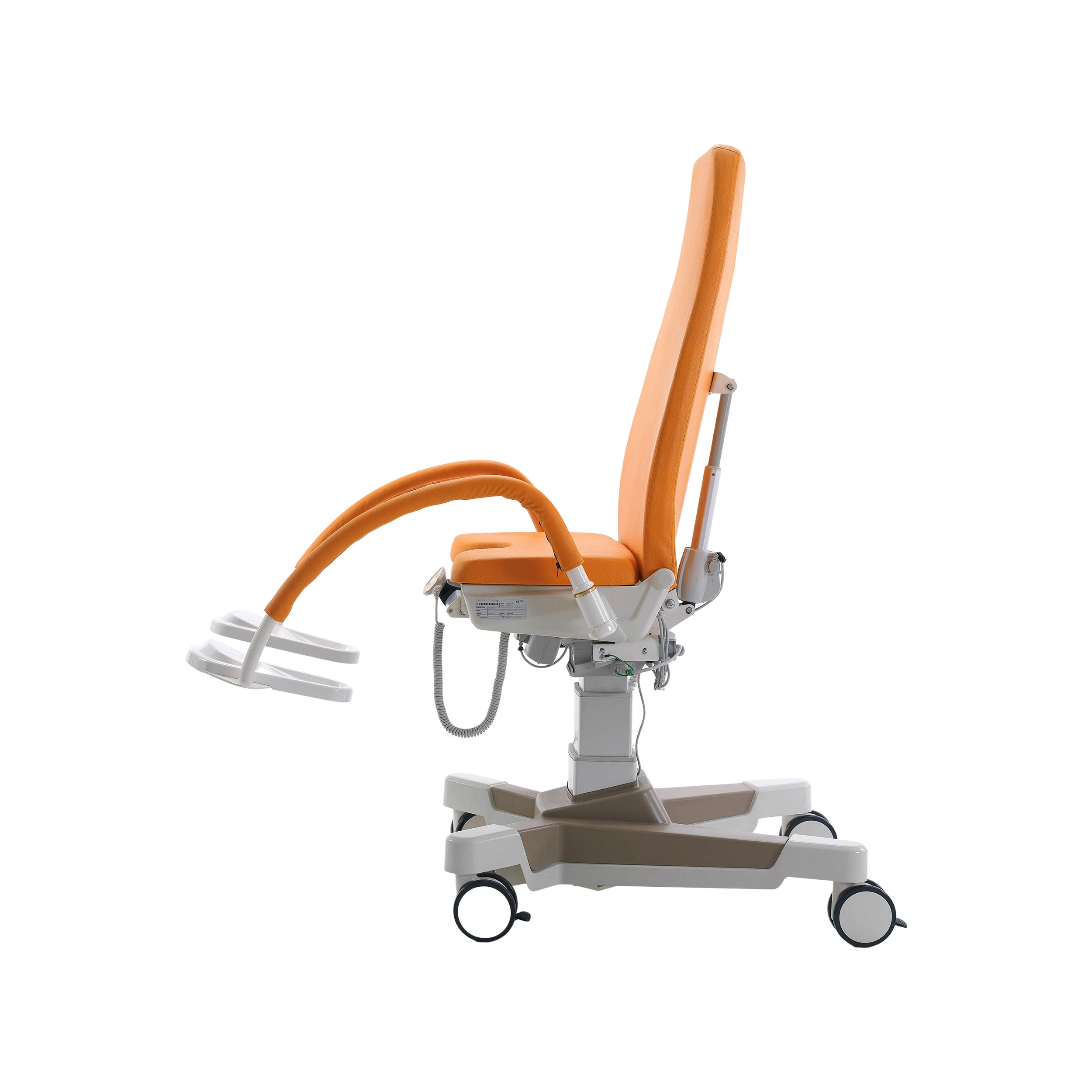

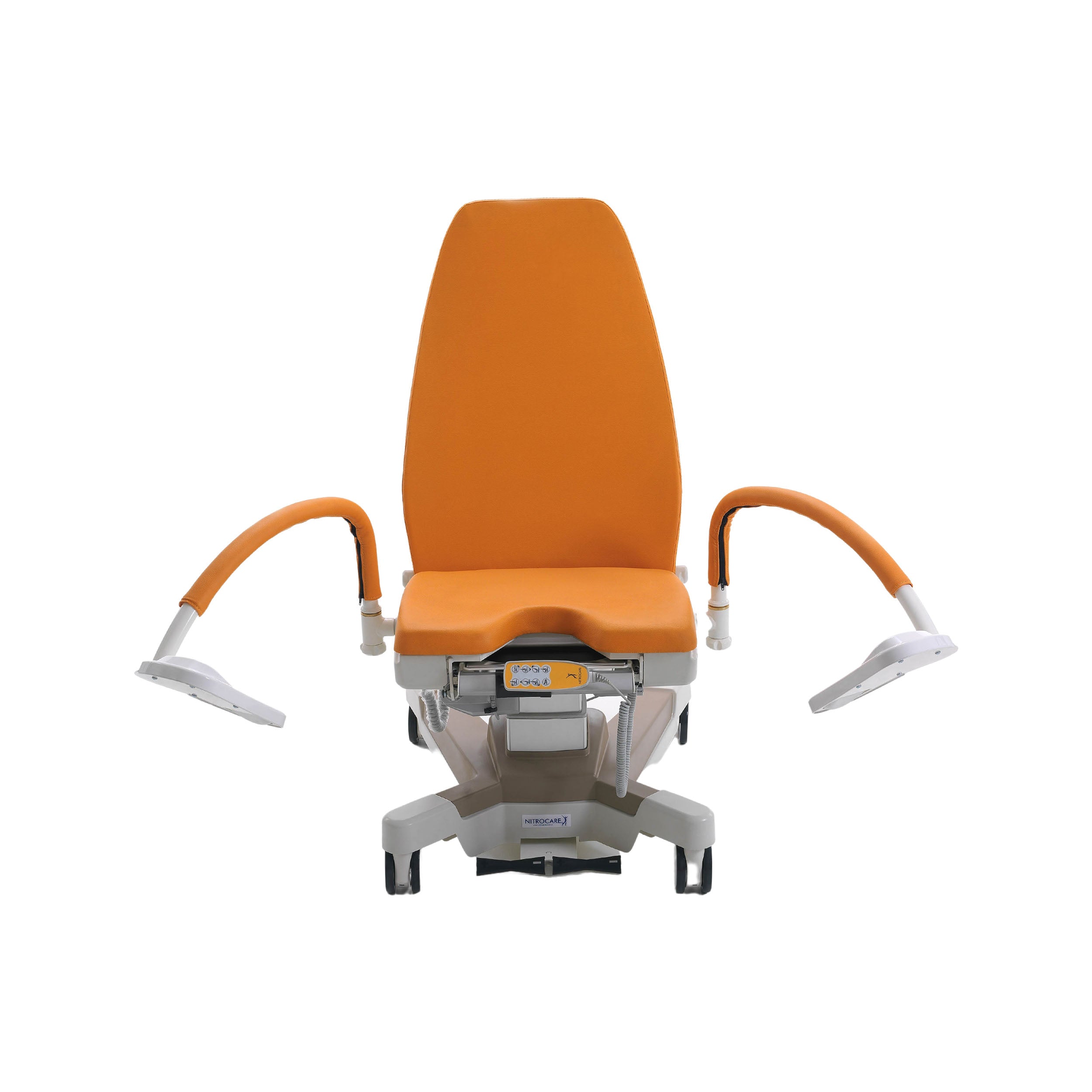

ELARA JMM 04 Gynecological Exam Chair

The Nitrocare ELARA Gynecological Exam Chair combines advanced functionality with modern design for superior patient comfort and clinical efficiency. Featuring motorized adjustments for height, backrest, and Trendelenburg positioning, it ensures precise control during gynecological exams and outpatient procedures. The chair includes a removable stainless-steel waste bin, a placenta collection system on telescopic rails, and fully adjustable foot supports for optimal flexibility. Its ABS plastic panels provide a clean, hygienic look, while the cast foam mattress with artificial leather upholstery offers durability and comfort.

Product Features
  • Designed specifically for gynecological chairs
  • Electronic motor for Trendelenburg and height adjustment
  • Operated via a handheld control unit
  • Equipped with battery backup for uninterrupted use
  • Durable, water-resistant, and antibacterial polyurethane foam finish
  • Easy-to-clean surface ensures hygienic maintenance
  • Constructed in two main parts: backrest and seat
  • Removable leg sections for easier examinations
  • Includes supportive examination leg rests
  • 5 in (125 mm) 360° rotating single castors for mobility
  • Linear brake and directional lock for straight-line movement
  • Packaged in a protective cardboard box
Specifications
  • Height motor: LINAK / 450 lbf (2000 N) / BL1 / IPX6
  • Back motor: LINAK / 1350 lbf (6000 N) / DC / IPX4
  • Trendelenburg motor: LINAK / 1350 lbf (6000 N) / DC / IPX4
  • Motor functions: Backrest, Trendelenburg, and height adjustment
  • Controls: Patient remote + foot control panel

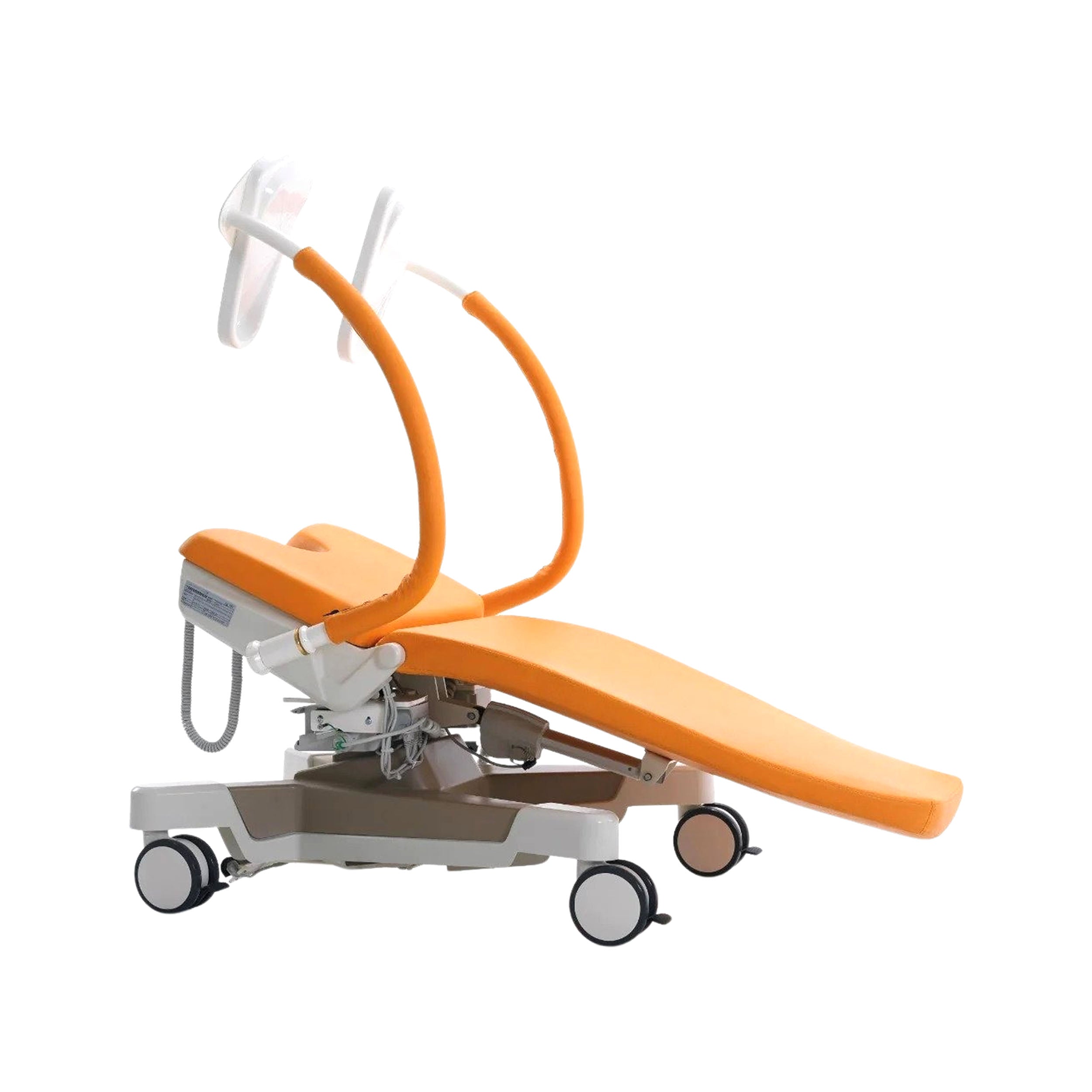

  • Trendelenburg range: 0° to 25°, electronically controlled
  • Metal profile thickness: 0.05–0.08 in (1.2–2.0 mm)
  • Bottom frame: 1.57 x 1.97 x 0.08 in (40 x 50 x 2 mm)
  • Upper frame: 1.57 x 3.15 x 0.08 in / 0.79 x 1.97 x 0.08 in (40 x 80 x 2 mm / 20 x 50 x 2 mm)
  • Paint: Electrostatic powder coating (1.6–3.5 mils / 40–90 microns)
  • ABS thickness: 0.1 in (2.5 mm)
  • Castors: Ø4.9 in (Ø125 mm) double castors, includes 1 antistatic
  • Castor locking: Linear locking system

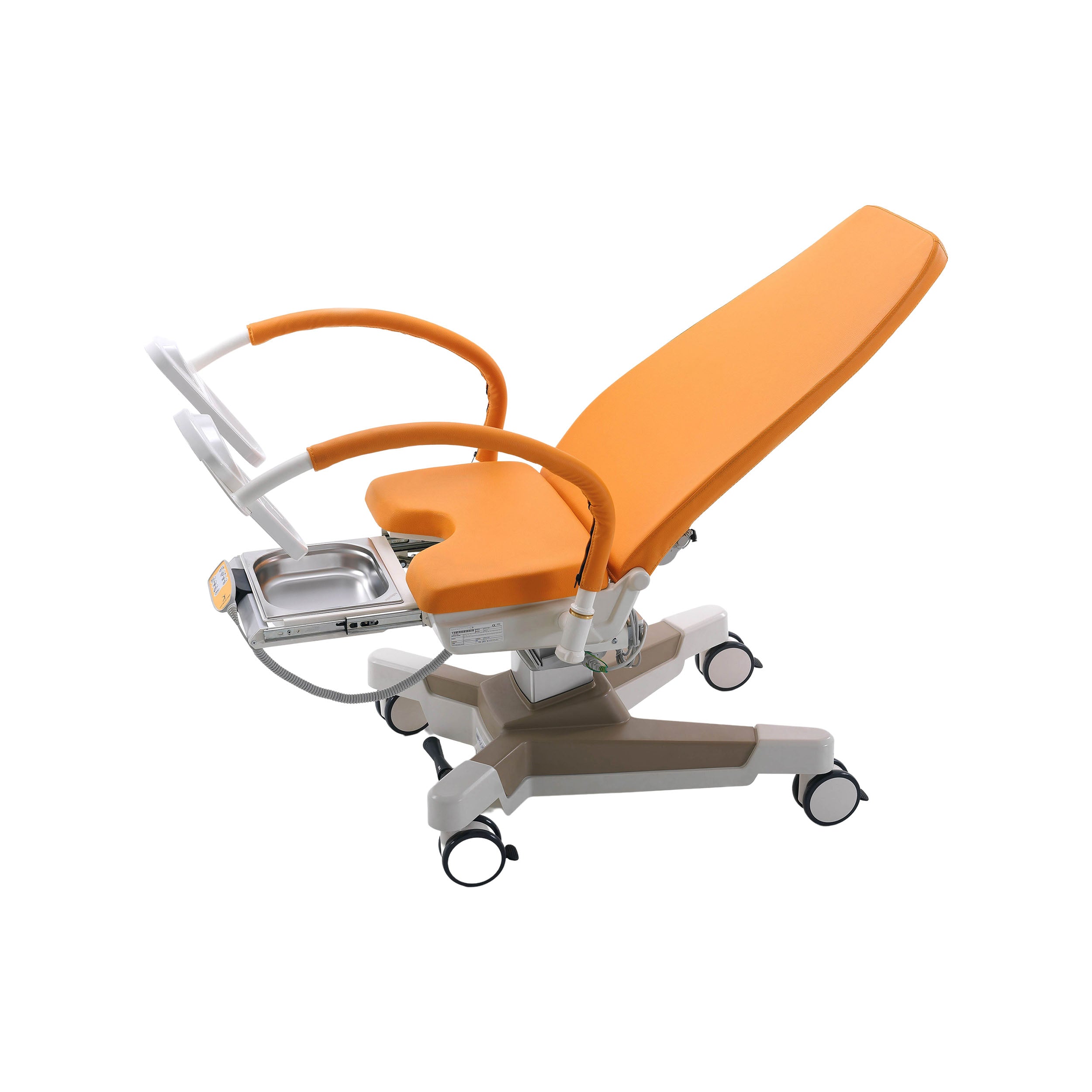

  • Basin: Removable stainless steel basin
  • Battery backup: Yes
  • Dimensions (W x L): 24.0 x 50.8 in (610 x 1290 mm)
  • Height range: 20.5–30.1 in (520–765 mm)
  • Load capacity: 385 lbs (175 kg)
  • Mattress: 50 DNS PU, artificial leather upholstery
Extended Product Information

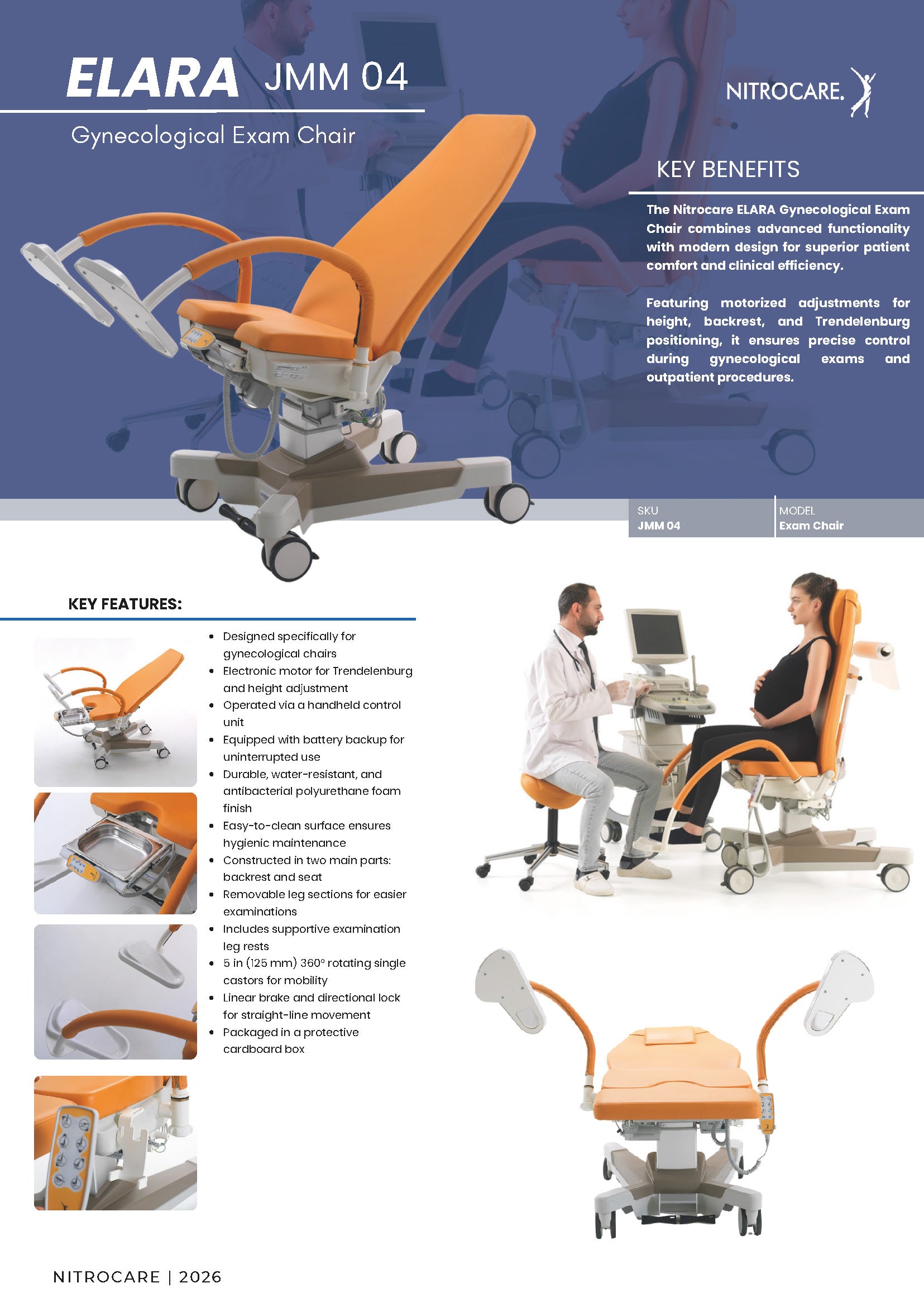

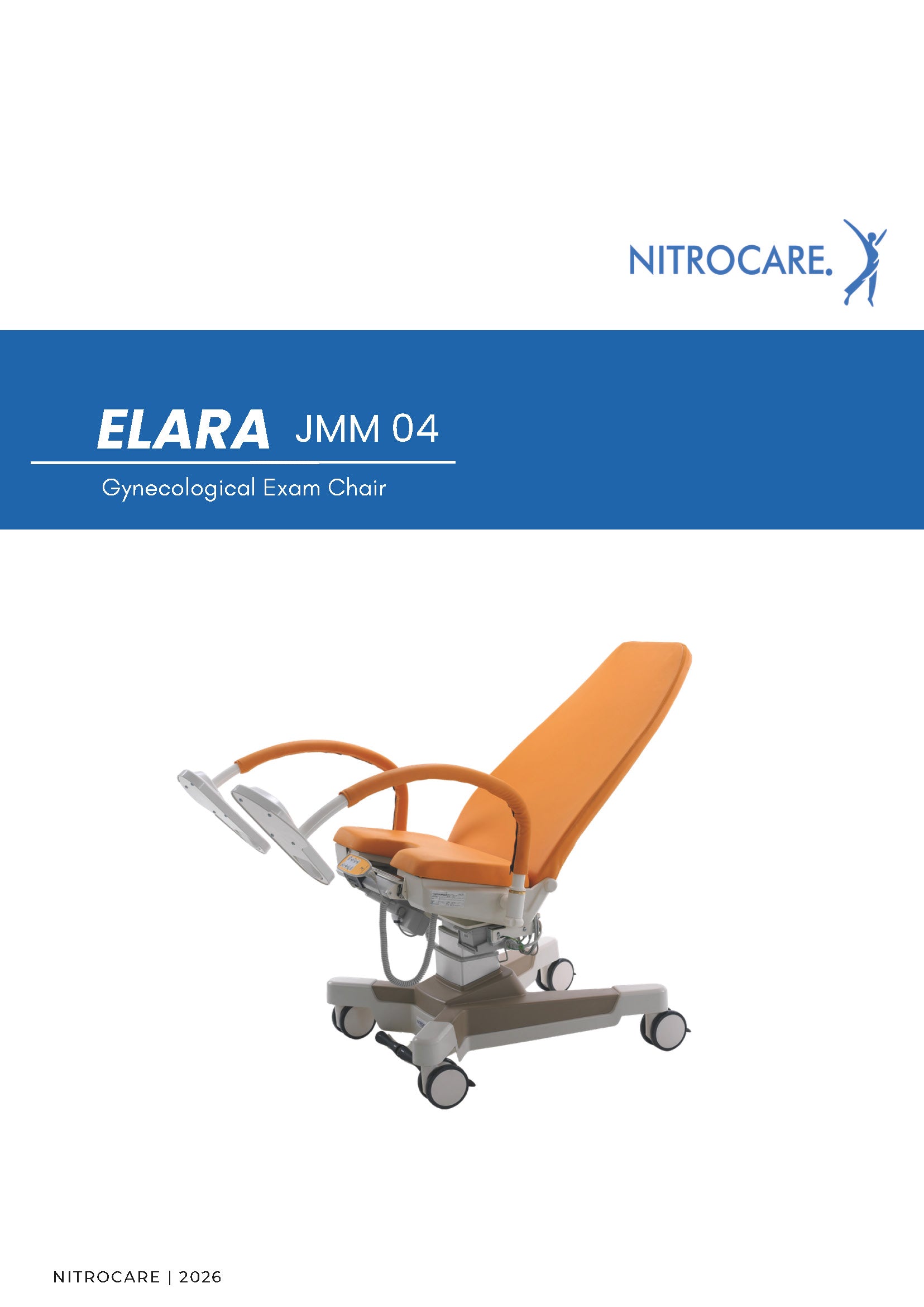

Product Brochure

ELARA JMM 04 Gynecological Exam Chair

Ships Within 5-7 weeks
