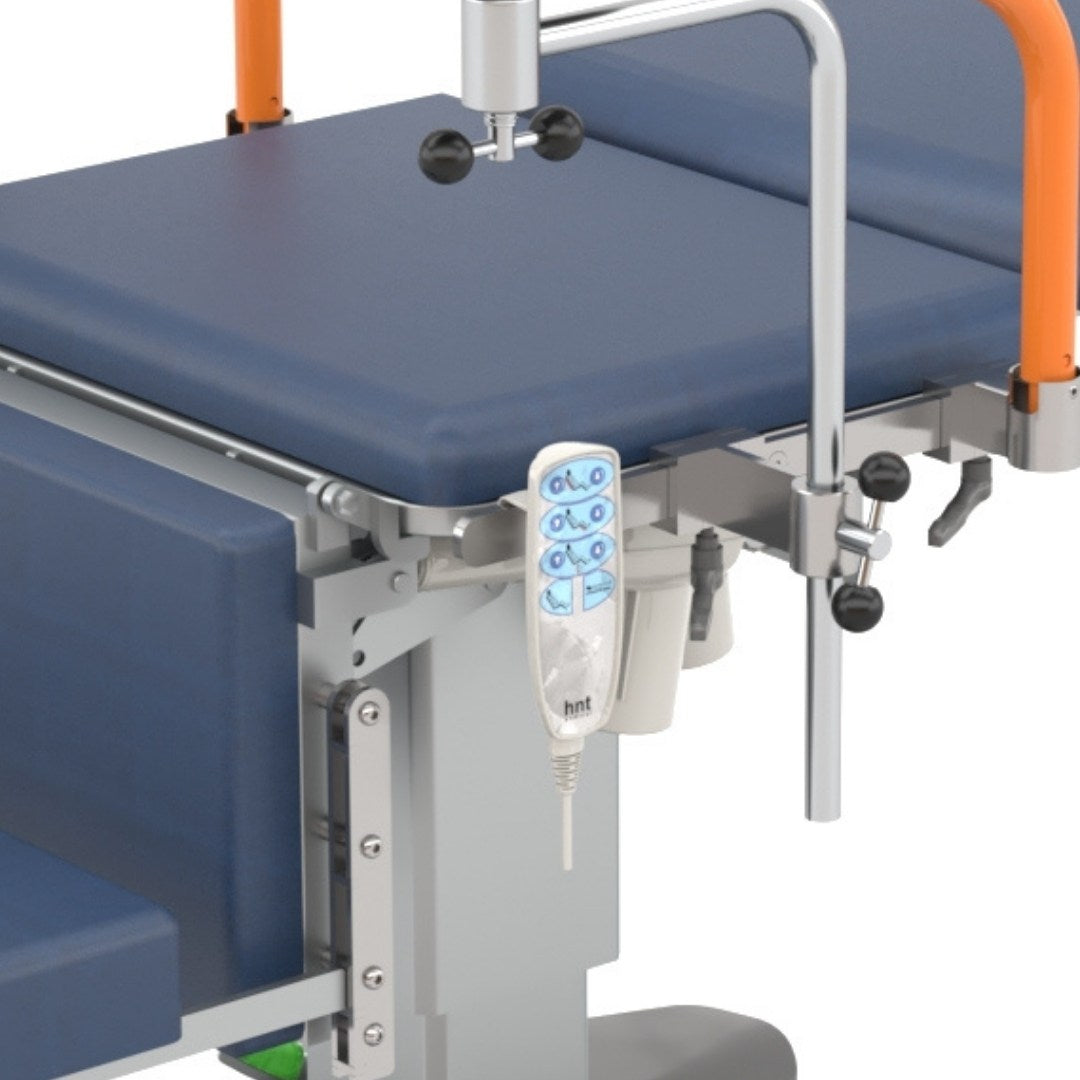

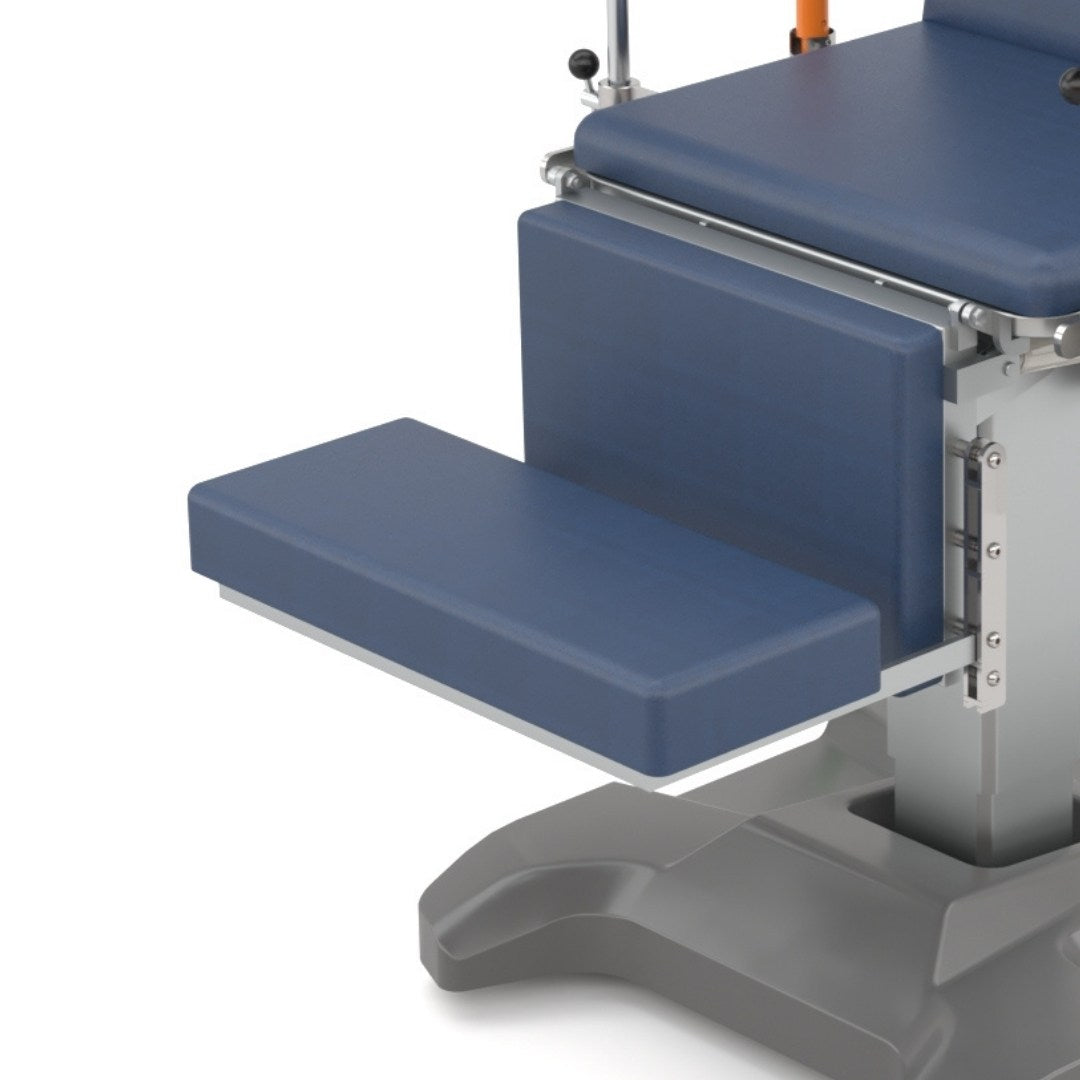

• Four Motorized Adjustments: Height, backrest, footrest, and Trendelenburg for versatile positioning.
• Low Entry Height: Starts at 19" (48.25 cm) for easy patient access.
• Ergonomic Comfort: Includes 2" (5 cm) viscoelastic pillow and antibacterial upholstery.

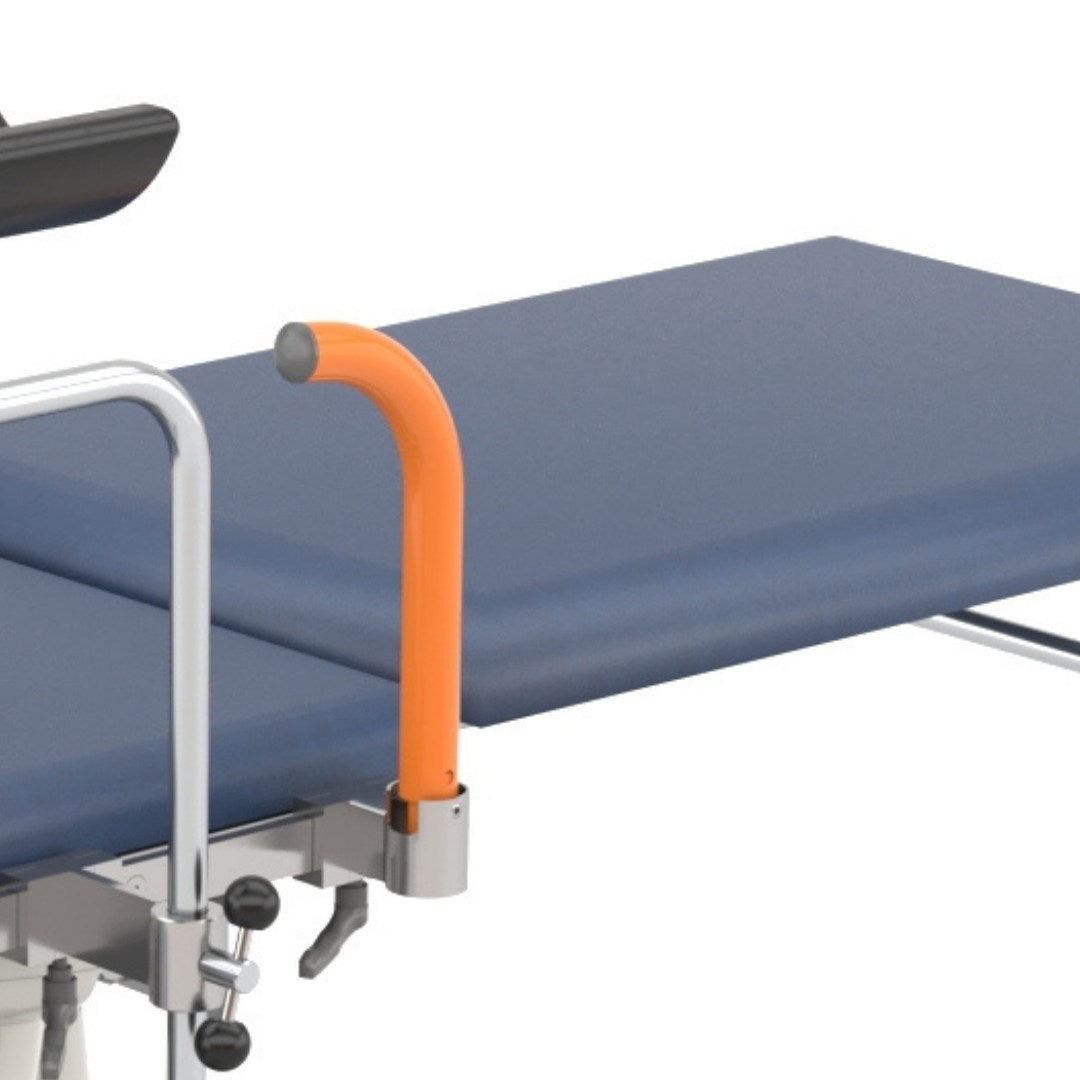

• Adjustable Arm Supports: Stainless steel for stability and patient safety.
• Emergency CPR Lever: Quick flattening in critical situations.
• Mobility Features: Retracting wheels for easy cleaning and repositioning.
• High Weight Capacity: 400 lbs (181 kg) standard; optional bariatric upgrade to 700 lbs (317 kg).
• Durable Construction: Carbon steel frame with electrostatic powder coating.
• Modern Design: Available in Black, Blue, and Grey.

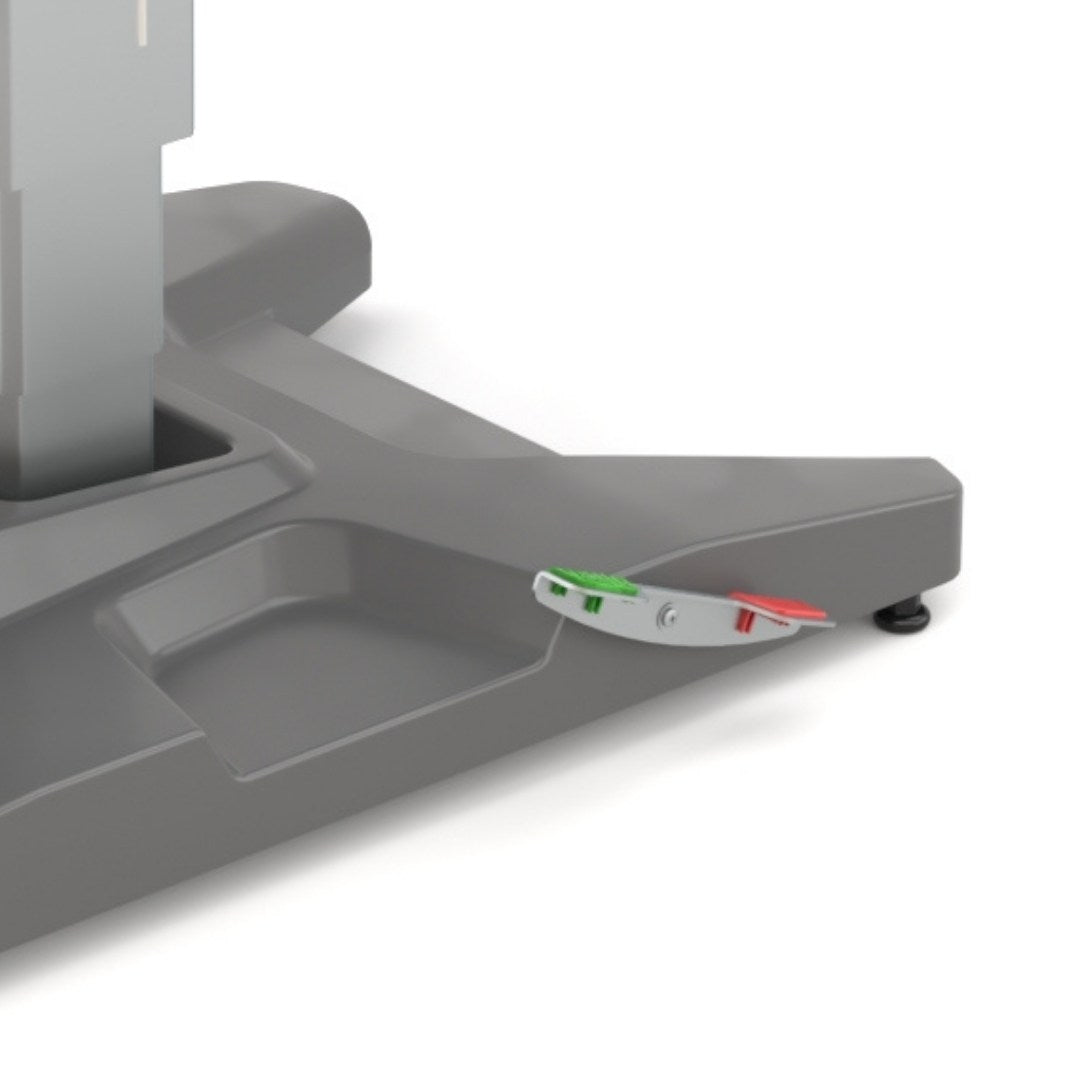

• Optional Foot Control: For added convenience during procedures.

• Height Range: 19"–40" (48.25–100 cm)
• Overall Dimensions: Width 23.6" (60 cm), Length 69.3" (176 cm)
• Back Section: 23.6" W × 31.5" L (60 × 80 cm)
• Seat Section: 18.9" L (48 cm)
• Foot Section: 12.6" L (32 cm)
• Tilt Range: Backrest 0°–90°, Footrest 0°–90°, Trendelenburg 0°–13°
• Armrest Capacity: 90 lbs (41 kg)
• Weight Capacity: 400 lbs (181 kg), optional bariatric 700 lbs (317 kg)
• Chair Weight: 195 lbs (89 kg)
• Electrical Requirements: 110–230 VAC, 50–60 Hz, 5.8 amps max
• Motors: Height (2000 N), Backrest (6000 N), Footrest (6000 N), Trendelenburg (6000 N)
• Frame: Carbon steel, electrostatic powder-coated
• Upholstery: Seamless antibacterial Vinleks with 2" (5 cm) viscoelastic pillow

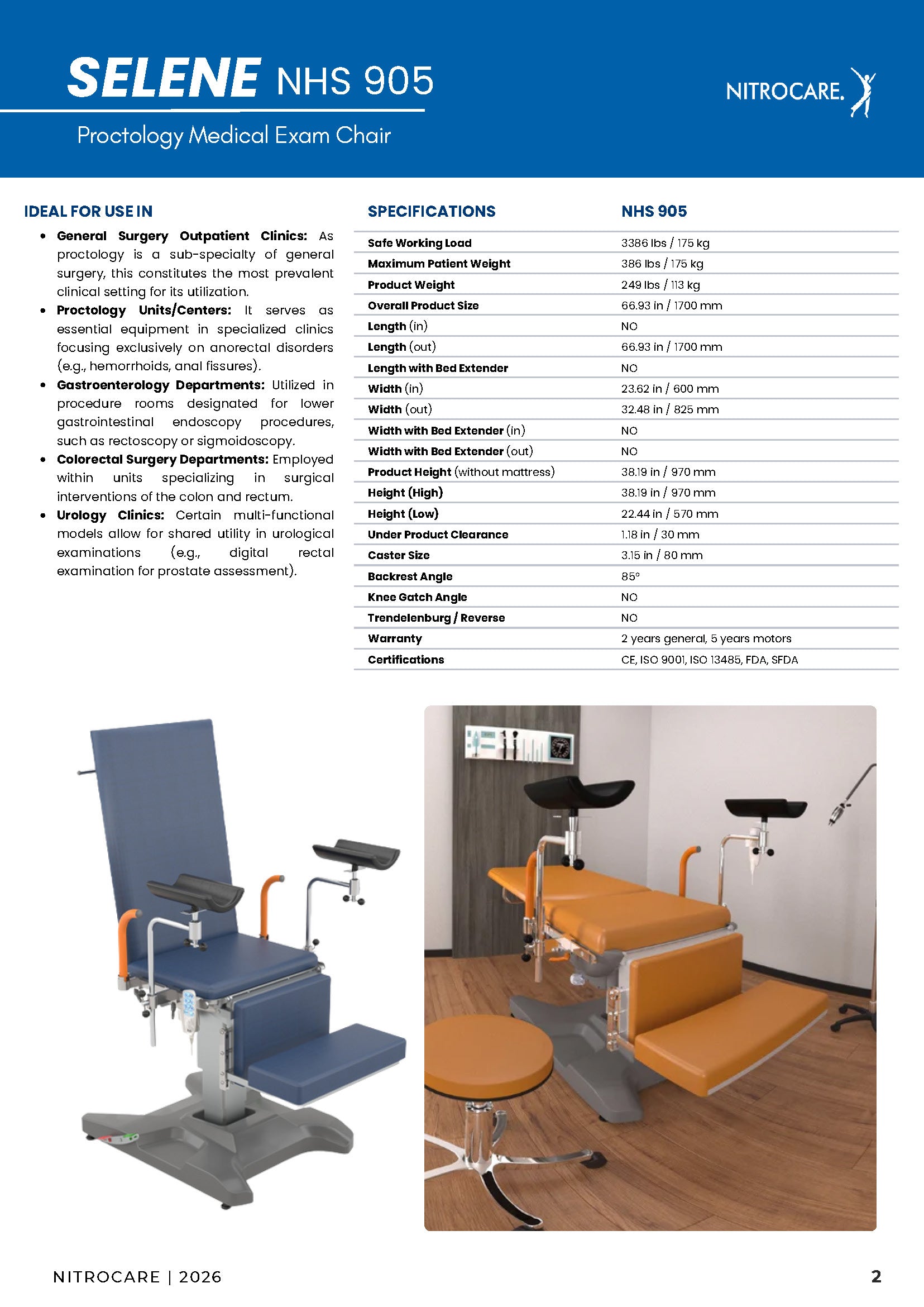

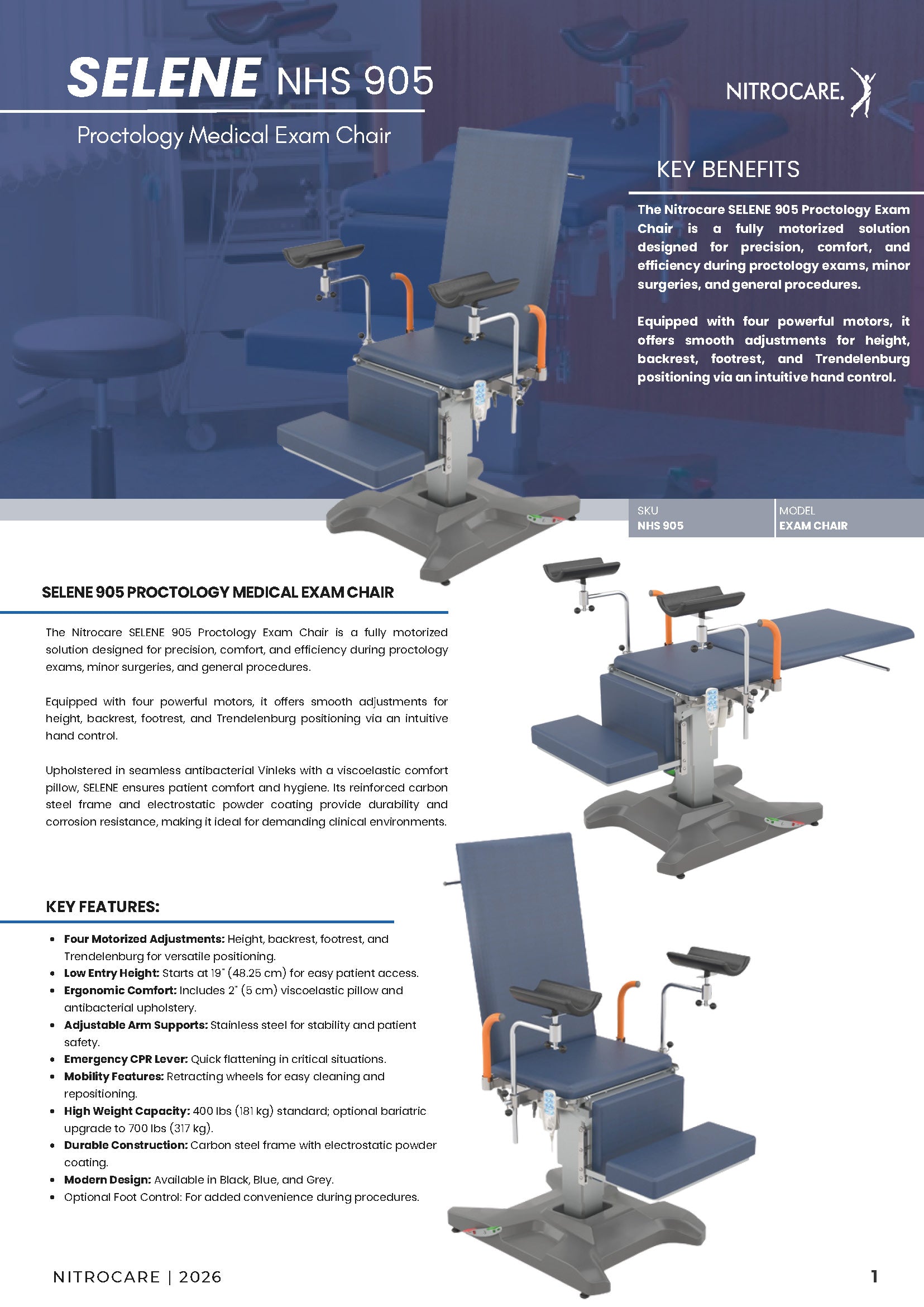

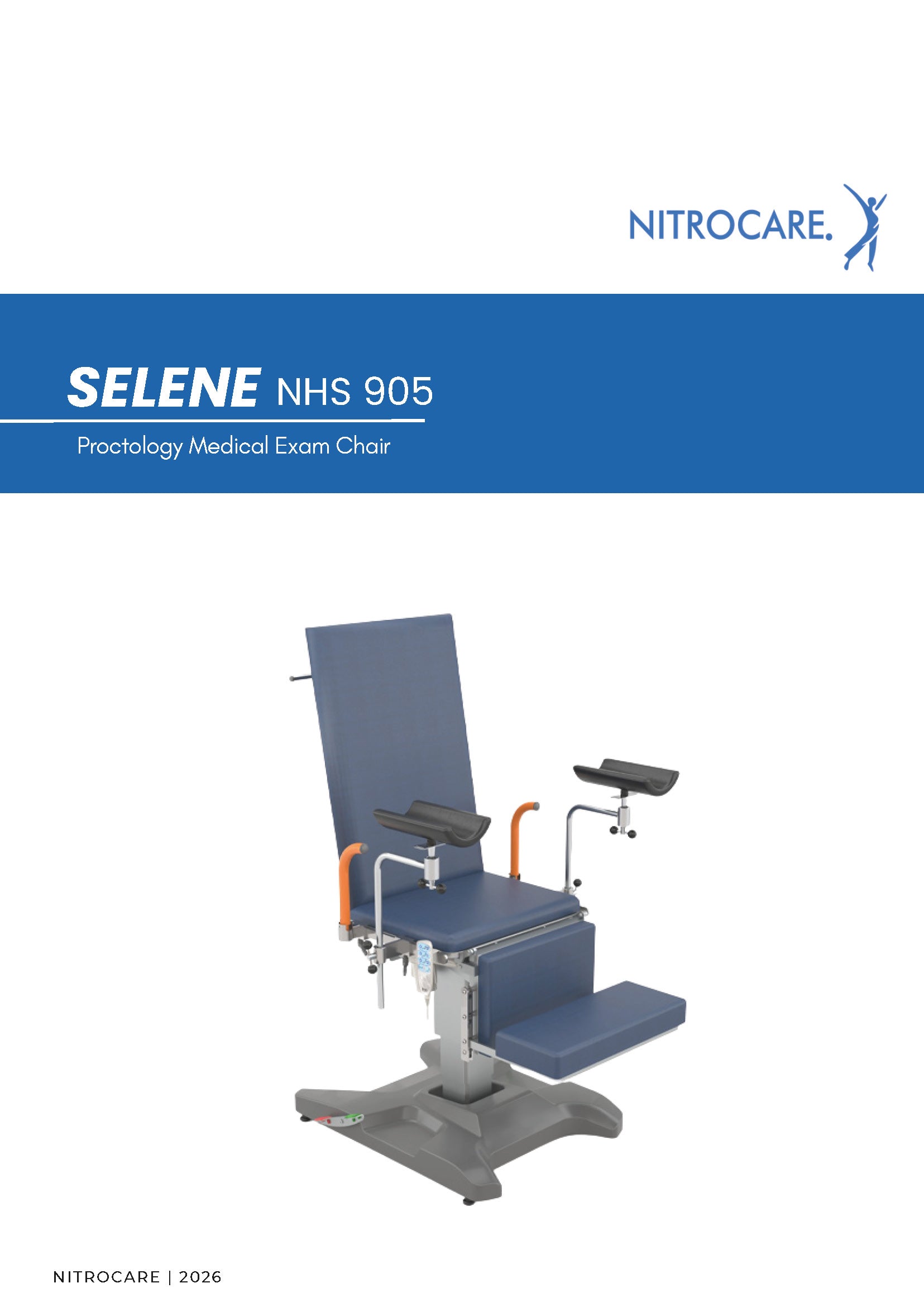

Product Brochure
